CrossPoint Reader

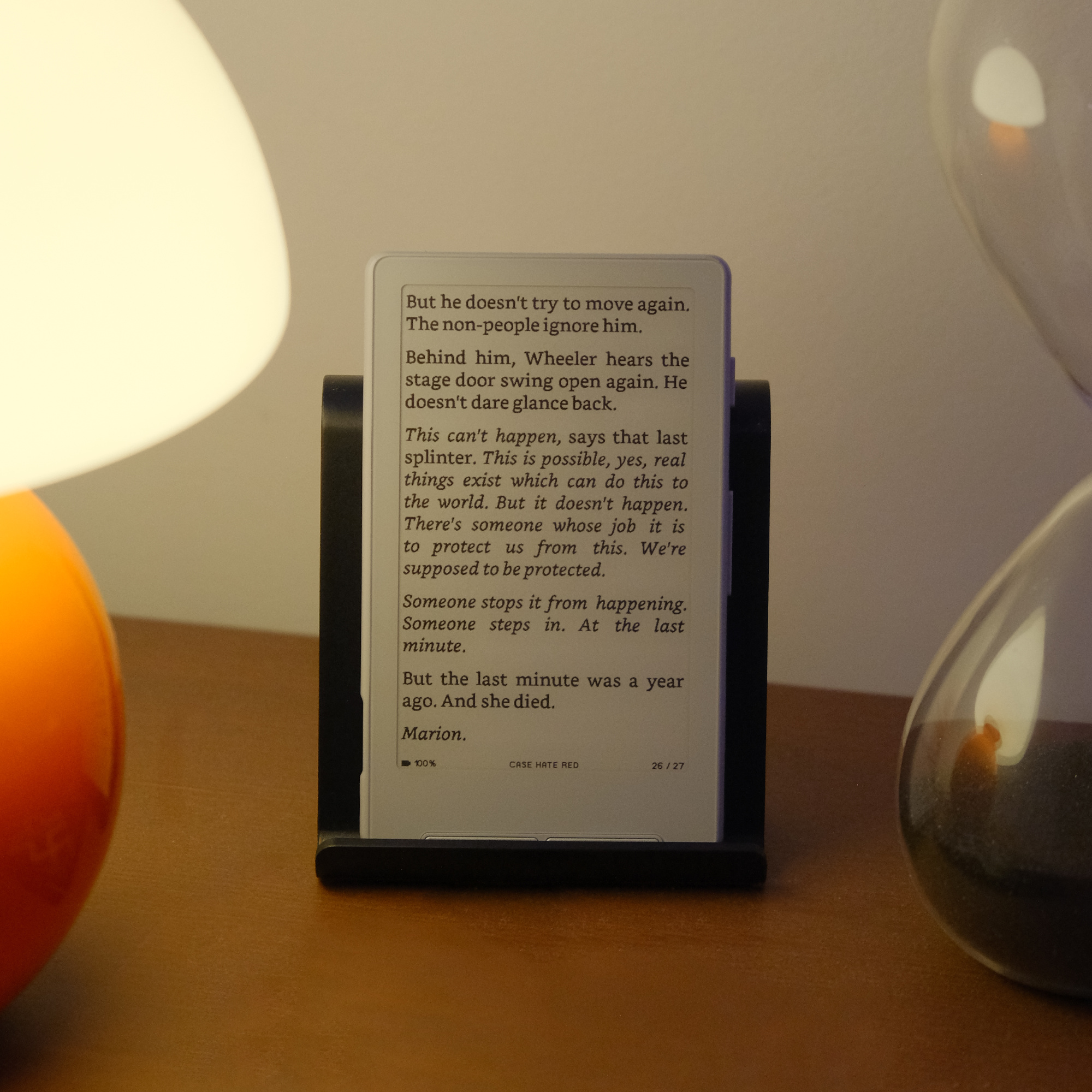

Firmware for the Xteink X4 e-paper display reader (unaffiliated with Xteink). Built using PlatformIO and targeting the ESP32-C3 microcontroller.

CrossPoint Reader is a purpose-built firmware designed to be a drop-in, fully open-source replacement for the official Xteink firmware. It aims to match or improve upon the standard EPUB reading experience.

Motivation

E-paper devices are fantastic for reading, but most commercially available readers are closed systems with limited customisation. The Xteink X4 is an affordable, e-paper device, however the official firmware remains closed. CrossPoint exists partly as a fun side-project and partly to open up the ecosystem and truely unlock the device's potential.

CrossPoint Reader aims to:

• Provide a fully open-source alternative to the official firmware.
• Offer a document reader capable of handling EPUB content on constrained hardware.
• Support customisable font, layout, and display options.
• Run purely on the Xteink X4 hardware.

This project is not affiliated with Xteink; it's built as a community project.

Features & Usage

• EPUB parsing and rendering (EPUB 2 and EPUB 3)
• Image support within EPUB
• Saved reading position
• File explorer with file picker
  • Basic EPUB picker from root directory
  • Support nested folders
  • EPUB picker with cover art
• Custom sleep screen
  • Cover sleep screen
• Wifi book upload
• Wifi OTA updates
• Configurable font, layout, and display options
  • User provided fonts
  • Full UTF support
• Screen rotation

Multi-language support: Read EPUBs in various languages, including English, Spanish, French, German, Italian, Portuguese, Russian, Ukrainian, Polish, Swedish, Norwegian, and more.

See the user guide for instructions on operating CrossPoint.

For more details about the scope of the project, see the SCOPE.md document.

Installing

Web (latest firmware)

1. Connect your Xteink X4 to your computer via USB-C
2. Go to https://xteink.dve.al/ and click "Flash CrossPoint firmware"

To revert back to the official firmware, you can flash the latest official firmware from https://xteink.dve.al/, or swap back to the other partition using the "Swap boot partition" button here https://xteink.dve.al/debug.

Web (specific firmware version)

1. Connect your Xteink X4 to your computer via USB-C
2. Download the firmware.bin file from the release of your choice via the releases page
3. Go to https://xteink.dve.al/ and flash the firmware file using the "OTA fast flash controls" section

To revert back to the official firmware, you can flash the latest official firmware from https://xteink.dve.al/, or swap back to the other partition using the "Swap boot partition" button here https://xteink.dve.al/debug.

Manual

See Development below.

Development

Prerequisites

• PlatformIO Core (pio) or VS Code + PlatformIO IDE
• Python 3.8+
• USB-C cable for flashing the ESP32-C3
• Xteink X4

Checking out the code

CrossPoint uses PlatformIO for building and flashing the firmware. To get started, clone the repository:

git clone --recursive https://github.com/crosspoint-reader/crosspoint-reader

# Or, if you've already cloned without --recursive:
git submodule update --init --recursive

Flashing your device

Connect your Xteink X4 to your computer via USB-C and run the following command.

pio run --target upload

Debugging

After flashing the new features, it’s recommended to capture detailed logs from the serial port.

First, make sure all required Python packages are installed:

python3 -m pip install pyserial colorama matplotlib

after that run the script:

# For Linux
# This was tested on Debian and should work on most Linux systems.
python3 scripts/debugging_monitor.py

# For macOS
python3 scripts/debugging_monitor.py /dev/cu.usbmodem2101

Minor adjustments may be required for Windows.

Internals

CrossPoint Reader is pretty aggressive about caching data down to the SD card to minimise RAM usage. The ESP32-C3 only has ~380KB of usable RAM, so we have to be careful. A lot of the decisions made in the design of the firmware were based on this constraint.

Data caching

The first time chapters of a book are loaded, they are cached to the SD card. Subsequent loads are served from the cache. This cache directory exists at .crosspoint on the SD card. The structure is as follows:

.crosspoint/
├── epub_12471232/       # Each EPUB is cached to a subdirectory named `epub_<hash>`
│   ├── progress.bin     # Stores reading progress (chapter, page, etc.)
│   ├── cover.bmp        # Book cover image (once generated)
│   ├── book.bin         # Book metadata (title, author, spine, table of contents, etc.)
│   └── sections/        # All chapter data is stored in the sections subdirectory
│       ├── 0.bin        # Chapter data (screen count, all text layout info, etc.)
│       ├── 1.bin        #     files are named by their index in the spine
│       └── ...
│
└── epub_189013891/

Deleting the .crosspoint directory will clear the entire cache.

Due the way it's currently implemented, the cache is not automatically cleared when a book is deleted and moving a book file will use a new cache directory, resetting the reading progress.

For more details on the internal file structures, see the file formats document.

Contributing

Contributions are very welcome!

If you're looking for a way to help out, take a look at the ideas discussion board. If there's something there you'd like to work on, leave a comment so that we can avoid duplicated effort.

Everyone here is a volunteer, so please be respectful and patient. For more details on our goverance and community principles, please see GOVERNANCE.md.

To submit a contribution:

1. Fork the repo
2. Create a branch (feature/dithering-improvement)
3. Make changes
4. Submit a PR

---

CrossPoint Reader is not affiliated with Xteink or any manufacturer of the X4 hardware.

Huge shoutout to diy-esp32-epub-reader by atomic14, which was a project I took a lot of inspiration from as I was making CrossPoint.
